PCB adapters fitted with 4 or 5 pin male or female XLR chassis connectors terminated with IDC or screw terminals. For use where cables have been installed & wall plates or patch bays need fixing at high speed & in a cold (no soldering) environment. The IDC terminals do not require a punch down tool and will accept 0.5 - 0.64 mm wire with a maximum OD of 1.8mm

The depth behind the panel for the IDC version is 47.5mm, see NC4FDM3-H, NC4MDM3-H, NC5FDM3-H or NC5MDM3-H for other dimensions.

4 pin female XLR to IDC
Order Code : NC4FDM3-H-PCB-IDC

4 pin male XLR to IDC
Order Code : NC4MDM3-H-PCB-IDC

5 pin female XLR to IDC
Order Code : NC5FDM3-H-PCB-IDC

5 pin male XLR to IDC
Order Code : NC5MDM3-H-PCB-IDC

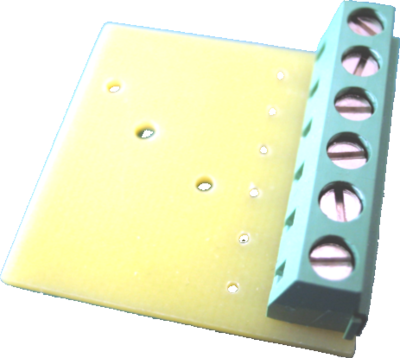

Order Code : PCB-MOUNT-4+5-XLR
