***DISCONTINUED***

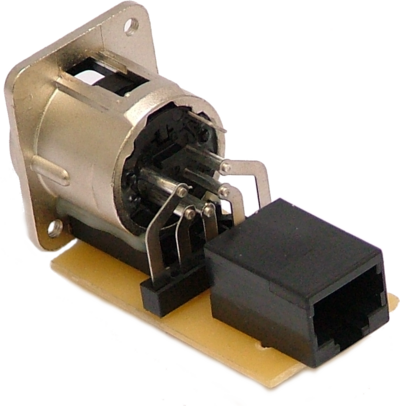

5 pin male or female XLR to RJ45 socket for DMX applications.
Can be panel mounted from the rear using M3 screws.
For use where cables have been installed & wall plates or patch bays need fixing at high speed & in a cold (no soldering) environment.
The depth behind the panel is 53mm, see NC5FDM3-H, NC5MDM3-H for other dimensions.
5 pin female XLR to RJ45 socket
Order Code : NC5FDM3-H-PCB-RJ45
5 pin male XLR to RJ45 socket
Order Code : NC5MDM3-H-PCB-RJ45
Wire | Wire Colour | DMX512 Function | XLR Pin |
1 | white/orange | data 1+ | 3 |
2 | orange | data 1- | 2 |
3 | white/green | data 2+ | 5 |
4 | green | data 2- | 4 |
5 | blue | not assigned | |
6 | white/blue | not assigned | |
7 | white/brown | common for data 1 | 1 |
8 | brown | common for data 2 | 1 |
