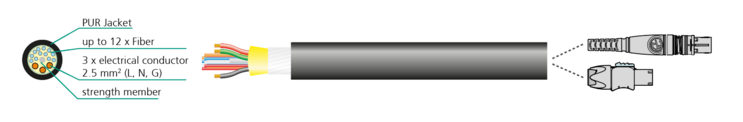

Rugged hybrid multi-channel cable assembly consisting of power wires (240V AC / 16A / 1.5 or 2.5mm2) and fiber lines (up to 12 channels). Perfect solution for harsh environments and mobile applications requiring both AC power and multiple fiber strands. Optimized for ENG/SNG.

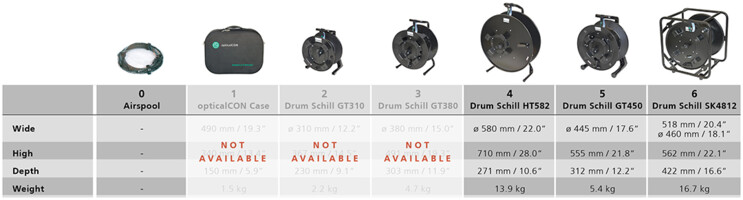

The opticalCON DUO/QUAD/MTP cable connector accommodates up to 12 PC/APC optical channels based on conventional and proven LC/MTP connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptionally well protected against dirt and dust by an automatically operated sealing cover. The cable is available in different lengths and is packed either on a drum or air spooled.
The powerCON TRUE1 TOP is a locking 16A rms (USA: 20A) true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
ATTENTION: The powerCON TRUE1 TOP is a connector with IP65 rating and breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
| Product | |

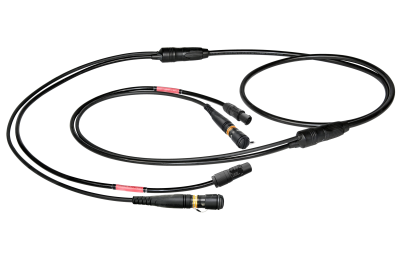

| Title | opticalCON POWER SPLIT |
| Mechanical | |
| Cable retention | 500 N |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | opticalCON DUO/QUAD 5000 mating cycles |
| Lifetime (typ.) | opticalCON MTP: 2500 mating cycles |
| Wiresize | |
| Locking device | Push-Pull |
| Material | |
| Boot | Rubber (EPDM) |
| Bushing | Zinc diecast (ZnAl4Cu1) |
| Insert | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief | Brass (CuZn39Pb3) + PU, Ni |
| Environmental | |
| Temperature range | -40 °C to + 70 °C |
| Optical | |
| Insertion loss | < 0.9 dB |
| Mobile cable | |
| Colour | black, matte |
| Core diameter | Singlemode 9 µm (G.657A), Multimode 50 µm µm (OM3) |
| Cladding diameter | 125 µm |
| minimal bending radius | 24.2 cm |
| Number of fibers | 8 |
| Weigth | 114 kg/km |
| Cable diameter | 11.7 mm |
