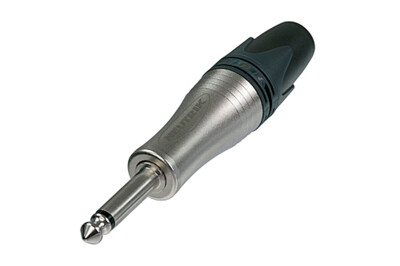

2 pole 1/4'' professional phone plug, up to 10 mm cable O.D.
The professional 1/4'' jumboPLUG for thick instrument and loudspeaker cables offers an ergonomic barrel and incorporates the proven features and benefits of the standard PX range.
Enter part number and search Neutrik UK distributor's stock.
Product | |
Title | NP2XL |
Electrical | |
Contact resistance | ? mΩ depends on mating connector |
Dielectric strength | 1 kVdc |
Insulation resistance | > 2 GΩ (initial), ≥ 1 GΩ (after damp heat test) |
Rated current per contact | ? A depends on mating connector |
Rated voltage | < 50 V |
Mechanical | |
Cable O.D. | ≤ 10 mm |
Lifetime | > 1000 mating cycles |
Wiresize | 1 mm² |
Wiresize | 18 AWG |
Environmental | |
Standard compliance | IEC 60603-11 / EIA RS-453 |
Temperature range | -20 °C to +65 °C |
