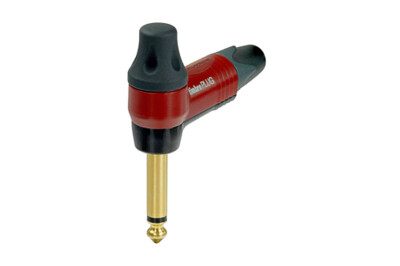

Right angle 1/4'' 2 pole timbre plug
The characteristic sound of a guitar is influenced to a certain extend by the used instrument cable. Particularly the natural electrical property of guitar cables cause the characteristic cable tone. Neutrik’s timbrePLUG provides the possibility to change the timbre of your guitar sound from neutral, clear sound to warm characteristics in 4 steps by turning a knob on the plug. A wide range of new sounds opens.
As brilliant as simple.
Enter part number and search Neutrik UK distributor's stock.
Product | |
Title | NP2RX-TIMBRE |
Electrical | |
Contact resistance | - mΩ depends on mating connector |
Dielectric strength | 100 kVdc |
Insulation resistance | > 2 GΩ (initial), ≥ 1 GΩ (after damp heat test) |
Rated current per contact | - A depends on mating connector |
Mechanical | |
Cable O.D. | 4 - 7 mm |
Lifetime | 1000 mating cycles |
Wiresize | 1 mm² |
Wiresize | 18 AWG |
Material | |
Insulation | Polyamide (PA 6.6 30% GR) |
Environmental | |
Temperature range | -20°C to +65 °C |
