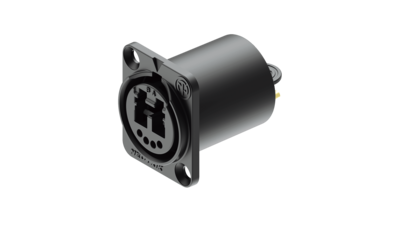

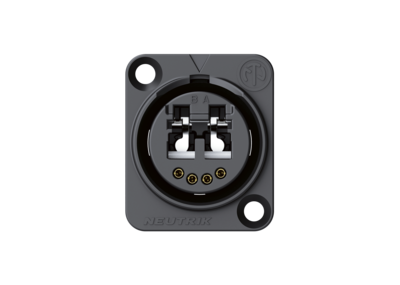

Chassis connector with black chromium plating, 4 solder contacts and 1 LC-Duplex feedthrough socket, waterproof acc. to IP65 ingress protection in mated condition with SCDP-*.
The chassis connector acts as a "feed-through" allowing simplified installations by connecting a conventional LC-Duplex on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection.
| Product | |
| Title | NO2-4FDW-A |
| Gender | female |
| Electrical | |
| Contact resistance | < 7 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 2 GΩ (initial) |
| Rated current per contact | 6 A |
| Rated voltage | < 50 V (1) |
| Mechanical | |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 5000 mating cycles |
| Locking force | 1000 N |
| Wiresize | |
| Locking device | Push-Pull |
| Mounting direction | Front mounting |
| Chassis shape | D |
| Material | |
| Contacts | Bronze (CuSn6) |
| Insert | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Split sleeve | ceramics |
| Environmental | |
| Temperature range | -40 °C to +75 °C |
| Protection class | IP65 in mated condition in combination with SCDP-* |
| Optical | |
| Insertion loss | < 0.4 dB / connection |
| Optical connector | LC-Duplex Feedthrough |
