NO2-4FDW-1-A

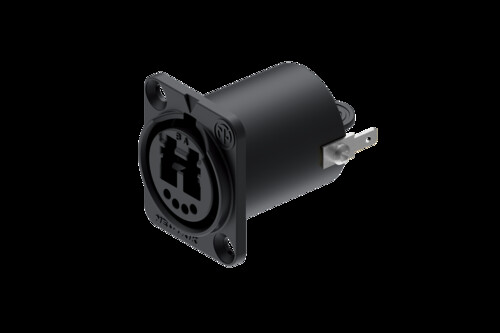

Chassis connector with black chromium plating, 4 solder contacts, 1 LC-Duplex feedthrough socket and 1 shell ground contact (for SMPTE cable shield), waterproof acc. to IP65 ingress protection in mated condition with SCDP-*.

The chassis connector acts as a "feed-through" allowing simplified installations by connecting a conventional LC-Duplex on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection.

Not compatible to SMPTE 304M standard. Suitable for indoor (studio) camera links considering specific conditions acc. to IEC 60664-1 like pollution degree 1, overvoltage category 1 and rated voltage.

Download Data Sheet

Selection of topics

Features & Benefits Downloads Technical Information Accessories

Download Data Sheet

Features & Benefits

Suggested OEM equipment connector due to LC front compatibility
Designed as feedthrough with automatic sealing shutter
Shutter with silicone gasket protects optical connection from dust and dirt
Suitable for indoor (studio) camera links considering specific conditions acc. to IEC 60664-1 like pollution degree 1, overvoltage category 1 and rated voltage
Accommodates standard LC connectors on the rear for simple installation
Connection on the front side either by rugged opticalCON or standard LC connector
The low cost of the chassis connector makes it a viable alternative to traditional connectors in fixed installations
IP65 ingress protection in mated condition with SCDP-*
Color coding with SCDP-* according to ANSI/TIA-568.3-D Standard:
Multimode - black
Single mode PC - blue
Single mode APC - green

Downloads

Technical Information

Product
Title	NO2-4FDW-1-A
Gender	female

Electrical
Contact resistance	< 7 mΩ
Dielectric strength	1,5 kVdc
Insulation resistance	> 2 GΩ (initial)
Rated current per contact	6 A
Rated voltage	< 50 V (1)
Ground contact	Faston 2.8 x 0.5 (soldering possible)

Mechanical
Insertion force	< 45 N
Withdrawal force	< 45 N
Lifetime (typ.)	5000 mating cycles
Locking force	1000 N
Wiresize
Locking device	Push-Pull
Mounting direction	Front mounting
Chassis shape	D

Material
Contacts	Bronze (CuSn6)
Insert	Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Black chromium
Split sleeve	ceramics
