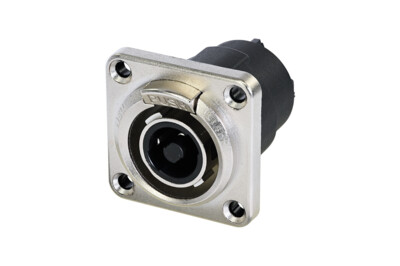

4 pole female chassis connector, metal housing, solder contacts or ¼“ flat tabs
This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.
The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.
Enter part number and search Neutrik UK distributor's stock.
| Product | |
| Title | NLT4FPXX |
| Gender | Female |
| Electrical | |
| Contact resistance | < 2 mΩ |
| Dielectric strength | 2.8 kVac |
| Insulation resistance | >0.1 GΩ (after dampheat) |
| Rated current per contact | 30 A rms continuous |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an AC mains or power supply connector! |
| Mechanical | |
| Lifetime | > 5000 mating cycles |
| Wiresize | 6 mm² |
| Wiresize | 10 AWG |
| Termination | Solder contacts |
| Locking device | Quick Lock |
| Mounting direction | Rear / front mounting |
| Chassis shape | square G-size flange |
| Layout | four thru holes |
| Material | |
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Shell | Zinc diecast, Ni plated |
| Insert | Polyamide (PA 66) |
| Locking element | Zinc diecast, Ni plated |
| Environmental | |
| Temperature range | -30 °C to +80 °C |
| Flammability | UL 94 V-0 |
| Protection class | IP 54 (mated condition) |
| Solderability | Complies with IEC68-2-20 |
