NL8MM
*** DISCONTINUED ***
Direct replacement / successor: NL8MMXX

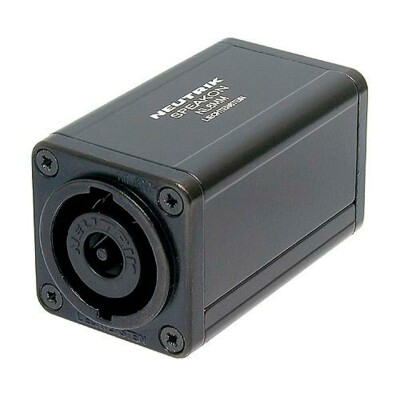

8 pole speakON feedthrough adapter for cable extensions
Selection of topics
Downloads
Distributor Stock Search
Technical Information
Distributor stock search
Enter part number and search Neutrik UK distributor's stock.
Technical Information
| Product | |
| Title | NL8MM |
| Connection Type | Adapter |
| Gender | male |
| Electrical | |
| Contact resistance | ≤ 3 mΩ (after lifetime) |
| Dielectric strength | 4 kVdc (peak) |
| Insulation resistance | > 1 GΩ (after dampheat) |
| Rated current per contact | 15 A rms continuous |
| Rated current per contact | 30 A audiosignal, duty cycle 50 % |
| Rated voltage | 250 V (Insulation) |
| Attention | speakON is NOT to be used as an AC mains or power supply connector! |
| Mechanical | |
| Lifetime | > 5000 mating cycles |
| Wiresize | |
| Locking device | Quick Lock |
| Material | |
| Contact plating | 4 µm Ag |
| Contacts | Bronze (CuSn6) |
| Insert | Polyamide (PA 6 30 % GR) |
| Shell | Polyamide (PA 6 30 % GR) |
| Environmental | |
| Flammability | UL 94 HB |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
