This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

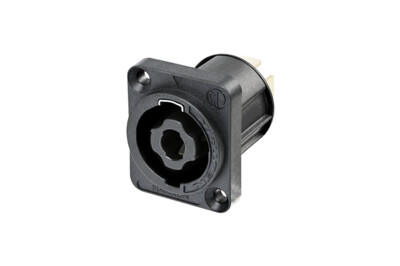

4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs.
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Enter part number and search Neutrik UK distributor's stock.
| Product | |
| Title | NL4MPXX |
| Gender | male |
| Electrical | |
| Contact resistance | 2.8 kVac |
| Dielectric strength | >0.1 GΩ (after dampheat) |
| Insulation resistance | > 1 GΩ (after dampheat) |
| Rated current per contact | 25 A rms continuous (audio rating significantly higher, depending on signal) |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an AC mains or power supply connector! |
| Mechanical | |
| Lifetime | > 5000 mating cycles |
| Termination | 3/16" flat tabs (e.g. NLFASTON) |
| Locking device | Quick Lock |
| Chassis shape | D |
| Layout | standard hole position, thru holes |
| Material | |
| Contact plating | Ag |
| Locking element | Stainless Steel |
| Shell | Polyamide (PA 6.6) |
| Contacts | Copper Alloy |
| Environmental | |
| Flammability | UL94 V-0 |
| Temperature range | -30 °C to +80 °C |
