This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

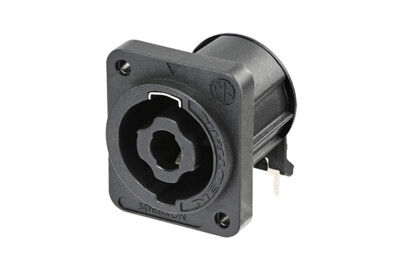

4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), horizontal PCB mount.
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Enter part number and search Neutrik UK distributor's stock.
Product | |
Title | NL4MDXX-H-3 |
Gender | male |
Electrical | |
Contact resistance | ≤ 2 mΩ |
Dielectric strength | 2.8 kVac |
Insulation resistance | >0.1 GΩ (after dampheat) |
Rated current per contact | 25 A rms continuous (audio rating significantly higher, depending on signal) |
Rated voltage | 250 V ac |
Attention | speakON is NOT to be used as an AC mains or power supply connector! |
Mechanical | |
Lifetime | > 5000 mating cycles |
Wiring | Horizontal PCB mount |
Locking device | Quick Lock |
Mounting direction | Rear mounting |
Chassis shape | D |
Layout | Standard hole position, self tapping screw holes (A-Screw) |
Material | |
Contact plating | Ag |
Locking element | Stainless Steel |
Shell | Polyamide (PA 6.6) |
Contacts | Copper Alloy |
Environmental | |
Flammability | UL 94 V-0 |
Temperature range | -30 °C to +80 °C |
