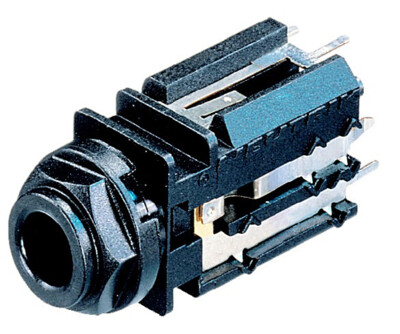

Non-switching mono jack (T/S)
Vertical PCB mount panel jack in A-gauge version with gold plated contacts and unique quick fixing cap for rapid panel mounting. Separation of mechanical latch and electrical contacts offers high retention force combined with low insertion force.
Enter part number and search Neutrik UK distributor's stock.
| Product | |
| Title | NJ2FD-V |
| Connection Type | Jack |
| Gender | female |
| Electrical | |
| Contact resistance | < 10 mΩ (initial) |
| Dielectric strength | 1 kVdc |
| Insulation resistance | ≥ 1 GΩ @ 500 V dc |
| Rated current per contact | 3 A |
| Mechanical | |
| Insertion force | < 20 N |
| Withdrawal force | < 8 N |
| Lifetime | > 10000 mating cycles |
| Panel thickness | 1.2 - 1.5 mm (0.047' - 0.06') |
| Wiresize | |
| Wiring | vertical PCB mount |
| Locking device | Retention spring |
| Mounting direction | Rear mounting |
| Chassis shape | 12 mm |
| Cap opening torque | 25 N cm / 9.84 N in |
| Material | |
| Cap / Nut / Washer | Polyacetal (POM) |
| Contact plating | 0.2 µm Au |
| Contacts | Bronze (CuSn6) |
| Shell | Polyamide (PA 6.6 30 % GR) |
| Environmental | |
| Standard compliance | EIA RS 453, IEC 60603-11 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -25 °C to +70 °C |
