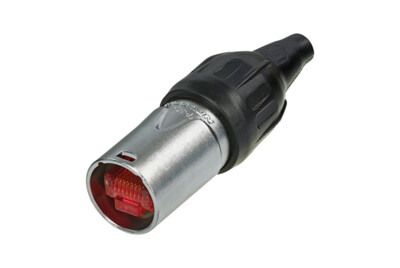

NE8MX-TOP

NE8MX-TOP

*** DISCONTINUED ***
Direct replacement / successor:
NE8MX-B-TOP (cable O.D. 5 to 8mm)
NE8MX-B-TOP-14  (cable O.D. 8 to 10 mm)




Cable connector carrier consists of a velour chromiuim shell, chuck and boot. The boot is suitable for cable diameters from 5 - 8 mm. For non pre-assembled cables only. Cable connector carrier does not include a RJ45 plug.

The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust, lockable and outdoor protected solution with IP65 rating and UL 50E certification.

ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Download Data Sheet

Features & Benefits

  • The RJ45 system for harsh and demanding environment
  • Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
  • IP65 rating and certified outdoor protection to UL 50E (in combination with a TOP range counterpart)
  • Rugged diecast shell and unique chuck type strain relief
  • Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
  • Allows assembly of non pre-assembled conventional RJ45 cables
  • Accessories include color coded boots in 9 standard colors

Downloads

Links

Distributor stock search

Enter part number and search Neutrik UK distributor's stock.

Technical Information

Product
Title NE8MX-TOP
Gender male
IMPORTANT Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user!
Mechanical
Cable O.D. 5.0 - 8.0 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Material
Boot UV-resistant rubber
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Velour Chromium
Strain relief Polyacetal (POM)
Environmental
Temperature range -30 °C to +80 °C
Protection class IP65, UL50E enclosure type 4 (mated)

Accessories

Add a description ...
NE8FFX6-W

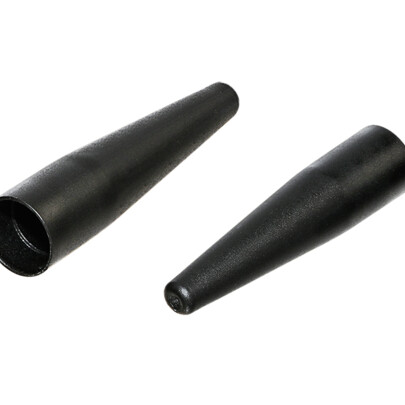

ITX-TOP
ITX-TOP
