NE8MX-1

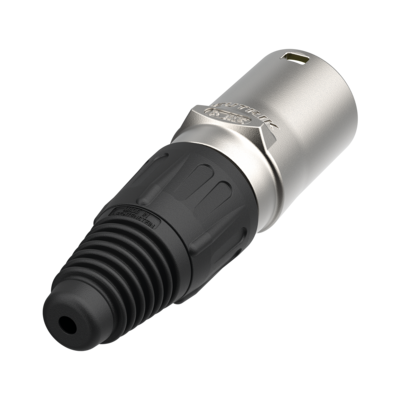

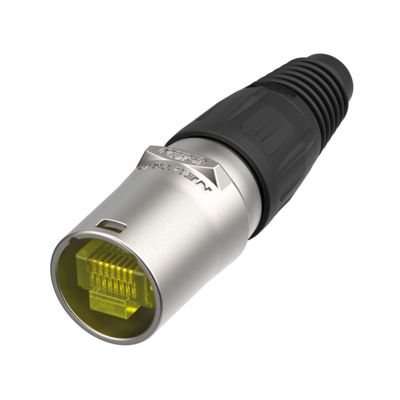

Cable connector carrier consists of a nickel shell, chuck and boot. The boot (same as X-series) is suitable for cable diameters from 3.5 - 8 mm. For non pre-assembled cables only. Cable connector carrier does not include a RJ45 plug.

The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.

ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Download Data Sheet

Selection of topics

Features & Benefits Downloads Distributor Stock Search Technical Information Accessories

Download Data Sheet

Features & Benefits

The RJ45 system for harsh and demanding environment
Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
Rugged diecast shell and unique chuck type strain relief
Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
Flat spot on the housing for better orientation
Allows assembly of non pre-assembled conventional RJ45 cables
Accessories include color coded boots in 9 standard colors

Downloads

Distributor stock search

Enter part number and search Neutrik UK distributor's stock.

Technical Information

Product
Title	NE8MX-1
Gender	male
IMPORTANT	Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user!

Mechanical
Cable O.D.	3.5 - 8 mm
Insertion force	≤ 20 N
Withdrawal force	≤ 20 N
Lifetime	> 1000 mating cycles

Material
Boot	Polyamide (PA 6)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Nickel
Strain relief	Polyacetal (POM)

Environmental
Temperature range	-30 °C to +80 °C

Accessories

BSX-*

NE8FFX6-W

HTX
