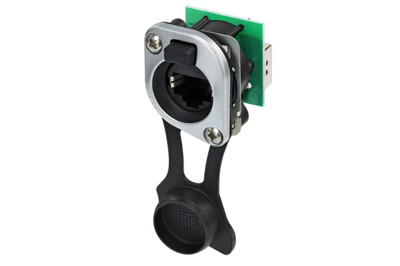

NE8FDP-TOP_open

NE8FDP-TOP

RJ45 feedthrough receptacle, combined with sealing kit SE8FD-TOP, D-shape metal flange with the latch lock, mounting screws included.

The etherCON series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lighting network applications with IP65 rating and UL 50E certification. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

ATTENTION: Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Download Data Sheet

Features & Benefits

  • IP65 rating and certified outdoor protection to UL 50E (in combination with NE8MX-TOP or sealing cap closed)
  • Uses high impact UV-resistant and gasket materials
  • Accomodates NE8MCX* or any standard RJ45 plug
  • CAT5e according to ISO/IEC 11801 and TIA/EIA 568A/B
  • Approved latch lock system
  • Mountable from the front of the panel
  • Ground panel connection
  • PoE type 4 class 8 (100W) acc. IEEE 802.3bt

Downloads

Links

Distributor stock search

Enter part number and search Neutrik UK distributor's stock.

Technical Information

Product
Title NE8FDP-TOP
Type Chassis
Connection Type etherCON
Gender female
Electrical
Contact resistance < 50 mΩ
Dielectric strength 1 kVdc
Frequency range 1 - 100 MHz
Insulation resistance > 0.5 GΩ
Rated current per contact 1.5 A
Rated voltage ≤ 57 V
Transmission performance CAT5e acc. to TIA/EIA 568A/B component specifications
CAT5e acc. to ISO/IEC 11801 component specifications
Power over Ethernet PoE type 4 class 8 (100W) acc. IEEE 802.3bt
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime 1000 mating cycles
Panel thickness 2 mm - 4 mm , 0.08" - 0.16"
Wiring Feedthrough
Locking device Latch lock
Chassis shape D
Material
Contact plating 0.2 µm Au over Ni plating
Contacts Bronze (CuSn8)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Chromium
Environmental
Flammability UL 94 V-0
Temperature range -30 °C to +80 °C
Protection class IP65, UL50E enclosure type 4 (mated or sealing cap closed)
Standard compliance ISO/IEC 11801-1 Ed. 1.0 (2017-11)
IEC 60603-7-3 Ed.2.0 (2010-04)
IEC 60512-99-002 Ed.2.0 (2022-01)
IEC 60512-9-3 (2011-06)

Accessories

SCCD-W
SCCD-W
