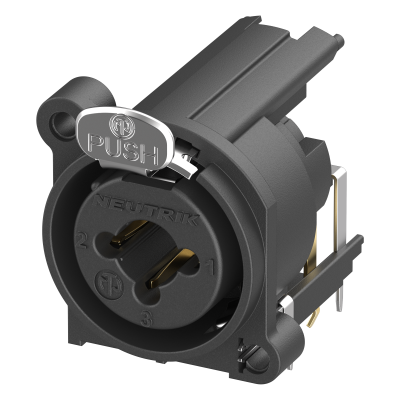

Introducing Combo E, the new NEUTRIK Combo connector. The Combo E features a flat front face providing a sleek, streamlined appearance. The housing is configurable with two different locking versions (metal latch or retention spring). Equipped with gold-plated contacts, Combo E delivers excellent conductivity and resistance to wear. Due to the UL94 V0 material used, flame retardancy is ensured. The vertical design, with a 24mm PCB distance, optimizes space in tight configurations, making it perfect for compact, high-performance applications.
Product | |
Title | NCJ9FE-H |
Product family | Combo |
Connection type | chassis connector |
Gender | female |
Electrical | |
Contact resistance XLR | ≤ 10 mΩ |
Contact resistance JACK | ≤ 20 mΩ |
Dielectric strength | 1.5 kVdc |
Insulation resistance | > 10 GΩ (initial) |
Rated current per contact XLR | 3 A |
Rated current per contact JACK | 3 A |
Rated voltage | < 50 Vac |
Mechanical | |
Insertion force | ≤ 20 N |
Withdrawal force | ≤ 20 N |
Lifetime | min. 1000 mating cycles |
Panel thickness | 1mm (0.04 ") - 3mm (0.12") |
Locking device | Latch lock |
Wiring | Horizontal PCB mount |
Mounting direction | Front mounting |
Mounting screw | A-screw-1-8 |
Material | |
Contact plating | Gold plating |
Contacts | Bronze |
Insert | Polyamide (PA66) |
Locking element | Steel |
Environmental | |
Flammability | acc. to UL 94 V-0 |
Solderability | Complies with IEC 60068-2-20 |
Temperatur | -30 °C to +80 °C |
