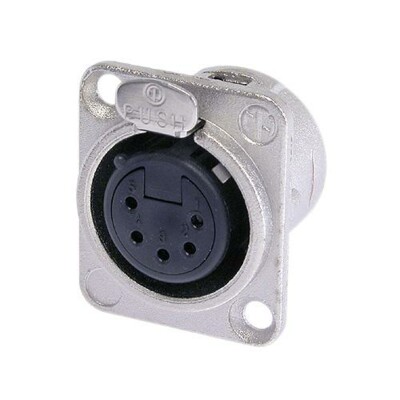

5 pole female receptacle, solder cups, Nickel housing, silver contacts
Universal D-size metal body XLR panel mount series. UL recognized component.
Enter part number and search Neutrik UK distributor's stock.
Product | |
Title | NC5FD-L-1 |
Connection Type | XLR |
Gender | female |
Electrical | |
Capacitance between contacts | ≤ 7 pF |
Contact resistance | ≤ 5 mΩ |
Dielectric strength | 1,5 kVdc |
Insulation resistance | > 10 GΩ (initial) |
Rated current per contact | 7,5 A |
Rated voltage | < 50 V |
Mechanical | |
Insertion force | ≤ 20 N |
Withdrawal force | ≤ 20 N |
Lifetime | > 1000 mating cycles |
Wiresize | max. 1.0 mm² |
Wiresize | max. 18 AWG |
Wiring | Solder contacts |
Locking device | Latch lock |
Chassis shape | D |
Material | |
Contact plating | 2 µm Ag over 2 µm Ni |
Contacts | Brass (CuZn39Pb3) |
Insert | Polyamide (PA66) |
Locking element | Steel Ck67 |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Nickel |
Environmental | |
Approvals | UL |
Flammability | UL 94 V-0 |
Standard compliance | IEC 61076-2-103 |
Protection class | IP 40 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 °C to +80 °C |
