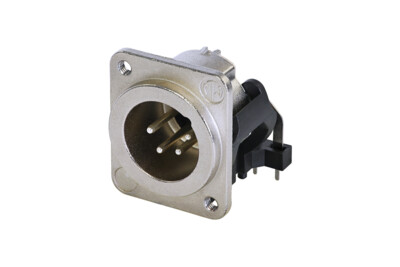

NC4MDM3-H-1

4 pole male receptacle, horizontal PCB mount, nickel housing, silver contacts, M3 mounting holes

Features a compact all metal housing with an ingenious duplex ground contach, which offers an excellent RF protection and shielding.

Insert is NOT removable from shell.

The all metal housing offers the best RF protection and an electromagnetic shielding.
Duplex ground contact for an excellent contact integrity between chassis and cable connector
The male connector retention bar replaces the plastic design with an all metal version improving the pull-out force.
Optional connection to easily join pin1 to chassis ground
D-style housing provides installation compatibility with industry standard D mounting dimensions
Insert is NOT removable from shell.
PCB mount termination

Technical Information

Electrical
Capacitance between contacts	≤ 7 pF
Contact resistance	≤ 5 mΩ
Dielectric strength	1.5 kVdc
Insulation resistance	> 10 GΩ (initial)
Rated current per contact	10 A
Rated voltage	< 50 V

Mechanical
Insertion force	≤ 20 N
Withdrawal force	≤ 20 N
Lifetime	> 1000 mating cycles
Wiring	Horizontal PCB mount
Locking device	Latch lock
Mounting direction	Rear mounting
Chassis shape	D
Mounting	Mounting holes with M3 threads
