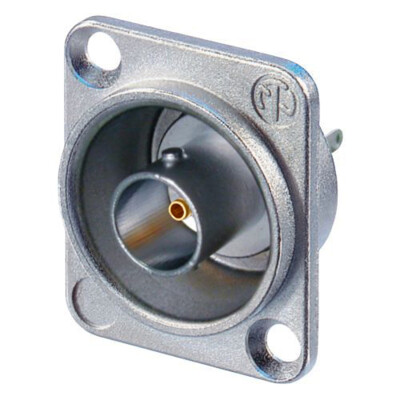

Isolated BNC chassis connector, solder version in nickel D-shape housing
Neutrik's BNC chassis connectors offer a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).
Enter part number and search Neutrik UK distributor's stock.
Product | |
Title | NBB75DSI |
Connection Type | BNC 75 Ω |
Gender | female |
Electrical | |
Signal Type | HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV |
Contact resistance | ≤ 3 mΩ (inner) |
Contact resistance | ≤ 2 mΩ (outer) |
Dielectric strength | 1,5 kVdc |
Impedance | 75 Ω |
Insulation resistance | > 5 GΩ |
Rated voltage | <50 V |
VSWR | ≤1.03/>37 dB up to 1 GHz ≤1.05/>32 dB up to 2 GHz ≤1.08/>28 dB up to 3 Ghz |
Mechanical | |
Insertion force | < 25 N |
Lifetime | > 1000 mating cycles |
Wiresize | |
Wiring | Solder contacts |
Locking device | Bayonett |
Mounting direction | Front mounting |
Chassis shape | D |
Material | |
Contacts | Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact) |
Insert | PTFE |
Shell | Polyacetal (POM) (Insulation Sheell) |
Shell plating | Optalloy® |
D-Shape housing | Zinc diecast (ZnAl4Cu1) gal Ni plating |
Environmental | |
Temperature range | -30 °C to +85 °C |
