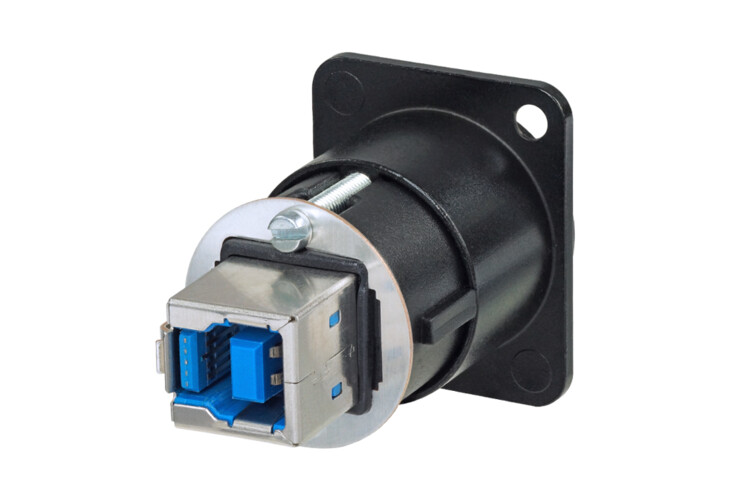

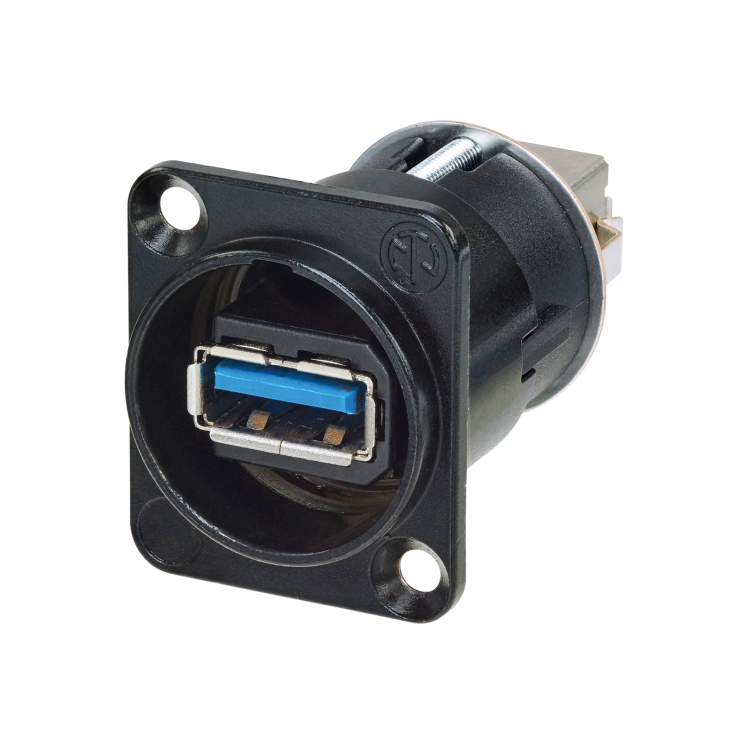

Reversible USB 3.0 gender changer (type A and B), black D-housing
The NAUSB3-B is a reversible USB 3.0 feed through adapter. The standardized D-shape housing of the adapter fits into conventional patch panels and offers an additional protection for the connector.
Not compatible with NKUSB-* cables.
To meet the USB3.0 specifications the NAUSB3* chassis contain tight tolerance pin wiring and an improved ground connection due to an additional copper film between the USB jacks. As a result the feed through adapter guarantees permanent writing and reading speed > 200 MB/s.
Certain applications require that the USB 3.0 type A or type B jack is on front to connect end devices like hard disk, cameras, etc. The connector configuration of the NAUSB3* can be changed by rotating the USB insert without special tools.
An additional metal lip guarantees optimum ground connection from USB 3.0 jack to the D-size flange in order to achieve a consistent ground level. To eliminate the ground connection pinch off the metal lip.
We recommend to use USB-IF certified cables to ensure error-free data transmission. Maximum length of USB-IF certified USB 3.0 passive cable is 2.0 meters.
Product | |
Title | NAUSB3-B |
Connection Type | Adapter |
Gender | female |
Electrical | |
Reading / Writing speed | >200 MB/s |
Mechanical | |
Wiresize | |
Mounting direction | Front mounting |
Chassis shape | D |
Lifetime | > 1000 mating cycles |
Material | |
Contact plating | Au |
Contacts | Bronze (CuSn) |
Insert | PBTP 15 % GR |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Nickel |
Environmental | |
Flammability | UL 94 V-0 |
Standard compliance | USB 3.0 specifications |
Temperature range | -25 °C to +85 °C |
