Features & Benefits
- Ideal for audio networking and integration of equipment into video systems
- Universally accepted standard D-shape housing
Distributor stock search
Enter part number and search Neutrik UK distributor's stock.
Technical Information
| Product | |

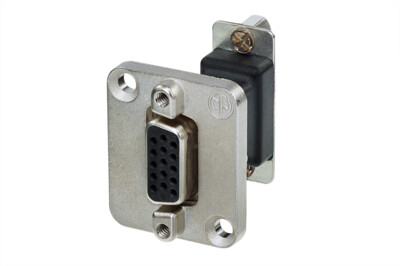

| Title | NADB15FF |
| Gender | female - female |
| Electrical | |
| Contact resistance | 30 mΩ |
| Insulation resistance | > 5 GΩ |
| Number of electronical contacts | 15 |
| Rated current per contact | 3 A |
| Rated voltage | 50 V ac |
| Dielectric strength | > 0.5 kVac |
| Mechanical | |
| Panel thickness | 4 mm |
| Wiresize | |
| Wiring | Feedthrough |
| Mounting direction | Front mounting |
| Chassis shape | D |
| Material | |
| Contact plating | Au |
| Contacts | Brass (Pb-free) |
| Insert | Steel , tin plated, PBT |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Environmental | |
| Flammability | UL 94-V0 |
| Temperature range | -25 °C to +85 °C |
