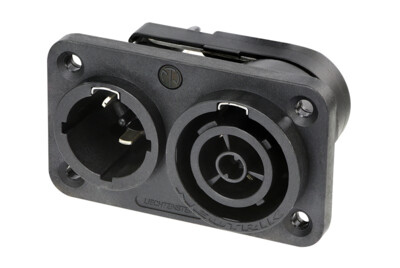

Appliance inlet-outlet combination, 1/4" flat tab terminals
The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Enter part number and search Neutrik UK distributor's stock.
| Product | |
| Title | NAC3PX-TOP |
| Electrical | |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 0.1 GΩ (after damp heat test IEC 68-2-30) |
| Number of electrical contacts | 2 + PE |
| Rated current per contact | 16 A rms (USA: 20 A) |
| Rated voltage | 250 V ac |
| Mechanical | |
| Lifetime | > 5000 mating cycles |
| Wiresize | 2.5 mm² |
| Wiresize | 12 AWG |
| Material | |
| Contact plating | 2 µm Ag |
| Locking element | Stainless steel |
| Shell | Polyamide (PA 6.6) |
| Contacts | Spring Copper (CuSn0.2) |
| Environmental | |
| Flammability | UL 94 V-0 |

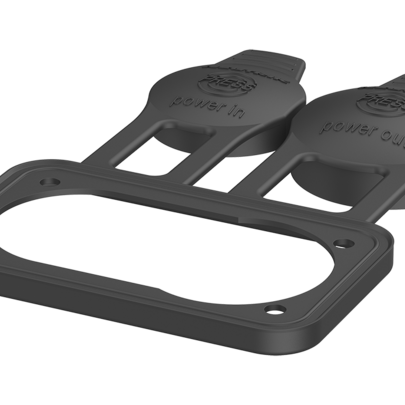

| Protection class | UL50E enclosure type 4 (mated or in combination with SCNAC-PX) |
| Temperature range | -30°C to +80°C according to IEC 61984 -5°C to +40°C according to IEC 60320-1 |
