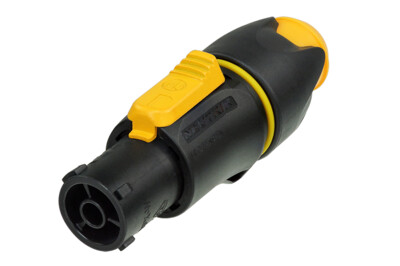

NAC3FX-W

NAC3FX-W

*Discontinued* Please see successor powerCON TRUE1 TOP series. Connectors of both series are fully compatible.

Locking female cable connector, screw terminals

The powerCON TRUE1 is a locking waterproof 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Download Data Sheet

Features & Benefits

  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Dust and water resistant according to IP65 in mated condition
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • Unique Neutrik cable retention
  • ENEC certified according to IEC 60320
  • UL recognized components

Downloads

Links

Distributor stock search

Enter part number and search Neutrik UK distributor's stock.

Technical Information

Product
Title NAC3FX-W
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 0,1 GΩ (after damp heat test IEC 68-2-30)
Number of electrical contacts 2 + PE
Rated current per contact 16 A rms (USA: 20 A)
Rated voltage 250 V ac
Mechanical
Cable O.D. 6 - 12 mm
Lifetime > 5000 mating cycles
Wiresize 1.0 - 2.5 mm²
Wiresize 12 AWG
Material
Contact plating 2 µm Ag
Contacts Bronze (CuSn0.2)
Insert Polyamide (PA 6.6 30 % GR)
Locking element ZuAl4Cu1
Shell Polyamide (PA 6.6 30 % GR)
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 V-0
Protection class IP 65 (mated)
Temperature range -30 °C to +80 °C

Accessories

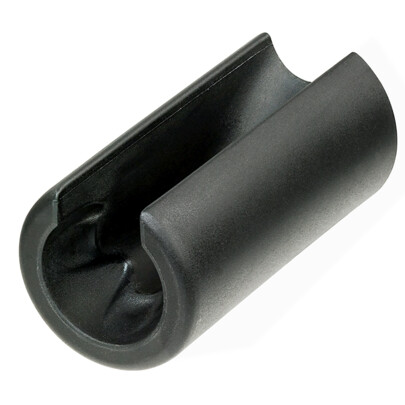

HTAC
HTAC
