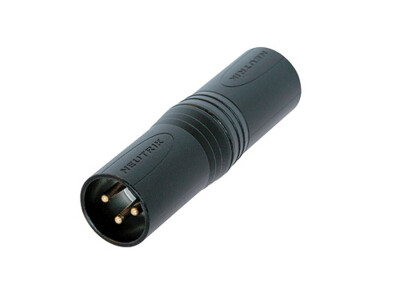

NA3MM-B
3 pole XLR male - 3 pole XLR male (gender conversion adapter, black plated)
Selection of topics
Features & Benefits
Downloads
Distributor Stock Search
Technical Information
Features & Benefits
- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
- Professional look and compact space saving design, based on the XX Series
- Rugged diecast shell for best reliability
Distributor stock search
Enter part number and search Neutrik UK distributor's stock.
Technical Information
| Product | |
| Title | NA3MM-B |
| Connection Type | Adapter |
| Electrical | |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 2 GΩ |
| Mechanical | |
| Wiresize | |
| Locking device | Latch lock |
| Material | |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell coating | Black KTL |
| Environmental | |
| Temperature range | -20 °C to +65 °C |
