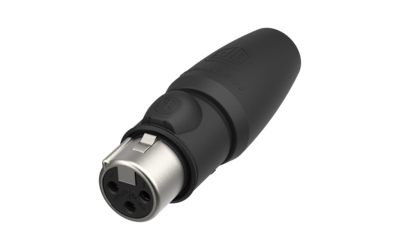

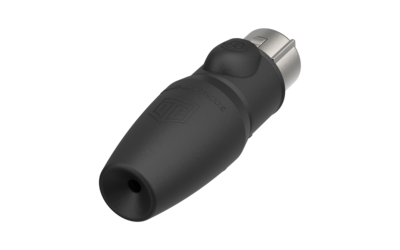

3 pole female cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts
The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. Outdoor protected by mating with related cable/chassis connector of the XLR TOP range (IP65).
Gold contacts are standard.
| Product | |
| Title | NC3FX1-TOP |
| Connection Type | XLR |
| Gender | female |
| Electrical | |
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Mechanical | |
| Cable O.D. | 5.0 - 8.0 mm |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 5000 mating cycles |
| Wiresize (mm²) | max. 1.5 mm² |
| Wiresize (AWG) | max. 16 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Material | |
| Bushing | UV-resistant rubber |
| Contact plating | Gold (Au) over Nickel (Ni) |
| Contacts | Bronze (CuSn8) |
| Insert | Polyamide (PA66) |
| Locking element | St3K32 (latch) / Ck 67 (spring) |
| Shell | Zinc diecast (ZnAI4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal |
| Sealing jacket | UV-resistant rubber |
| Environmental | |
| Flammability acc. to UL94 | V0 (insert) |
| Standard compliance | IEC 61076-2-103 |
| Protection class acc. to OEC 60529 | IP 65 (mated) |
| Solderability standard | IEC 60068-2-20 |
| Temperature range | -30 °C to +80 °C |
| Polltion degree acc. to IEC 60664-1 | II |
