NC3FD-LX-BAG

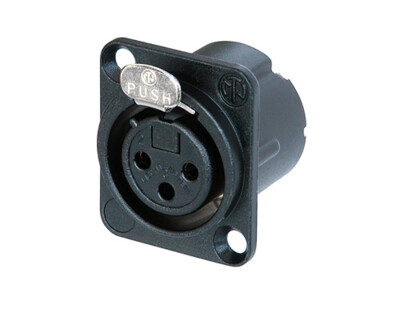

3 pole female receptacle, solder cups, black metal housing, silver contacts
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.
- All metal housing offers best overall RF protection and electromagnetic shielding
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Technical Information
Product | |
---|---|
Title | NC3FD-LX-BAG |
Connection Type | XLR |
Gender | female |
Electrical | |
---|---|
Capacitance between contacts | ≤ 4 pF |
Contact resistance | ≤ 5 mΩ |
Dielectric strength | 1,5 kVdc |
Insulation resistance | > 10 GΩ (initial) |
Rated current per contact | 16 A |
Rated voltage | < 50 V |
Mechanical | |
---|---|
Insertion force | ≤ 20 N |
Withdrawal force | ≤ 20 N |
Lifetime | > 1000 mating cycles |
Wiresize | max. 2.5 mm² |
Wiresize | max. 14 AWG |
Wiring | Solder contacts |
Locking device | Latch lock |
Chassis shape | D |
Material | |
---|---|
Contact plating | 2 µm Ag |
Contacts | Bronze (CuSn6) |
Insert | Polyamide (PA66) |
Locking element | Steel Ck67 |
Locking element plating | Nickel |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell coating | Black KTL |
Environmental | |
---|---|
Flammability | UL 94 V-0 |
Standard compliance | IEC 61076-2-103 |
Protection class | IP 40 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 °C to +80 °C |
