NC3FBV1

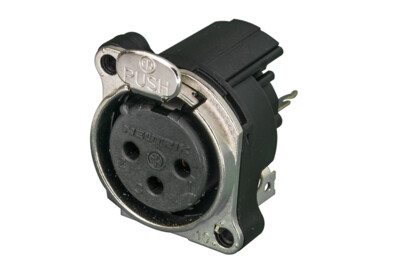

3 pole female XLR receptacle, grounding: mating connector shell to pin1 and front panel, vertical PCB mount
Same as A series with exception of a metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC practice. UL recognized component.
Features & Benefits
- Smallest XLR receptacles, highest packing density
- Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
- Tulip type female contact
- Housing flammability UL94V-0
Downloads
Technical Information
Product | |
---|---|
Title | NC3FBV1 |
Connection Type | XLR |
Gender | female |
Electrical | |
---|---|
Capacitance between contacts | ≤ 4 pF |
Contact resistance | ≤ 6 mΩ |
Dielectric strength | 1,5 kVdc |
Insulation resistance | > 10 GΩ (initial) |
Rated current per contact | 6 A |
Rated voltage | < 50 V |
Grounding Options | Pin 1 connected direct to front panel and connector shell, no separate ground contact |
Mechanical | |
---|---|
Insertion force | ≤ 20 N |
Withdrawal force | ≤ 20 N |
Lifetime | > 1000 mating cycles |
Wiresize | |
Wiring | vertical PCB mount |
Locking device | Latch lock |
Mounting direction | Rear mounting |
Chassis shape | B |
Mounting | B-Screw |
Material | |
---|---|
Contacts | Bronze (CuSn6) |
Insert | Polyamide (PA 6.6 30 % GR) |
Locking element | Steel Ck67 |
Locking element plating | Nickel |
Ring | Zinc diecast (ZnAl4Cu1) |
Flange | Metal |
Environmental | |
---|---|
Approvals | UL |
Flammability | UL 94 V-0 |
Standard compliance | IEC 61076-2-103 |
Protection class | IP 40 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 °C to +80 °C |
Accessories
audio

B-SCREW-1-8

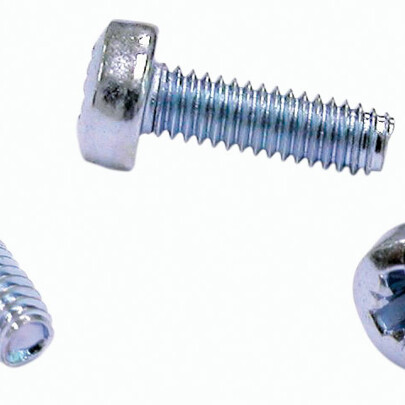

Selftapping TAPTITE® screw M2.5 DIN 7500 for B-Series, panhead

CAS-DUMMY
The dummyPLUG case includes a mixed assortment of dummyPLUGs
audio

NDF
dummyPLUG for Neutrik female XLR receptacles
audio

SCF
Dust protection cover for female chassis connectors
audio

SFAV

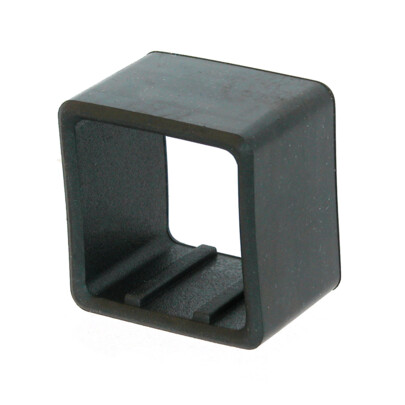

Rubber frame to mount between the front plate and the rear vertical print, for airtight vertical XLR A and B Series chassis connectors
