NC3FAAV2-0

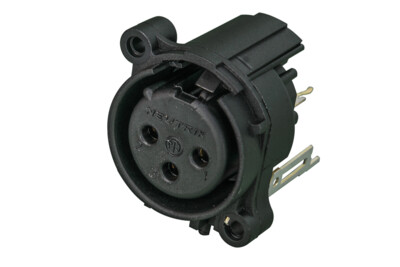

3 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount, retention spring instead of latch
Most cost-effective round plastic body XLR PCB mount panel connector. Front panel cutout and PCB layout 100% compatible to A series. "Tulip" type contact design with high contact pressure for highest durability. Flammability rating UL94HB. UL recognized component.
- Most cost-effective series
- "Tulip" type contact design with high contact pressure for highest durability
- Selective gold plated contact and PCB termination area for best conductivity and solderability
Technical Information
Product | |
---|---|
Title | NC3FAAV2-0 |
Connection Type | XLR |
Gender | female |
Electrical | |
---|---|
Capacitance between contacts | ≤ 4 pF |
Contact resistance | ≤ 6 mΩ |
Dielectric strength | 1,5 kVdc |
Insulation resistance | > 10 GΩ (initial) |
Rated current per contact | 6 A |
Rated voltage | < 50 V |
Grounding Options | Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1 |
Mechanical | |
---|---|
Insertion force | ≤ 20 N |
Withdrawal force | ≤ 20 N |
Lifetime | > 1000 mating cycles |
Locking force | > 20 separating force N |
Wiresize | |
Wiring | vertical PCB mount |
Locking device | Retention spring |
Mounting direction | Rear mounting |
Chassis shape | A |
Mounting | A-Screw |
Material | |
---|---|
Contacts | Bronze (CuSn6) |
Locking element | Steel Ck67 |
Shell | Polyamide (PA 6.6 30 % GR) |
Environmental | |
---|---|
Approvals | UL |
Flammability | UL 94 HB |
Standard compliance | IEC 61076-2-103 |
Protection class | IP 40 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 °C to +80 °C |
