*** DISCONTINUED ***
Direct replacement / successor: NL4MDXX-V

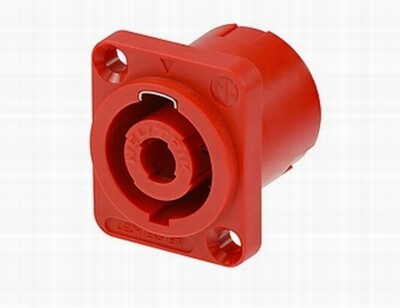

4 pole chassis connector, red D-size flange, countersunk thru holes, vertical PCB mount. The red color is a differentiating factor to indicate for instance bridging or crossover connections.
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Enter part number and search Neutrik UK distributor's stock.
Product | |
Title | NL4MD-V-R |
Type | Chassis |
Gender | male |
Electrical | |
Contact resistance | ≤ 3 mΩ (after lifetime) |
Dielectric strength | 4 kVdc (peak) |
Insulation resistance | > 1 GΩ (after dampheat) |
Rated current per contact | 30 A rms continuous |
Rated current per contact | 40 A audio signal, duty cycle 50% |
Rated voltage | 250 V ac |
ATTENTION | speakON is NOT to be used as an AC mains or power supply connector! |
Mechanical | |
Lifetime | > 5000 mating cycles |
Wiresize | |
Locking device | Quick Lock |
Chassis shape | D |
Layout | standard hole position, thru holes |
Material | |
Contact plating | 4 µm Ag |
Contacts | Bronze (CuSn6) |
Shell | Polyamide (6 30% GR) (red) |
Environmental | |
Flammability | UL 94 HB |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 °C to +80 °C |
