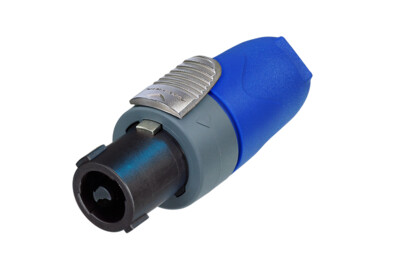

NL2FX
*** DISCONTINUED ***
Direct replacement / successor: NL2FXX-W-S
2 pole cable connector, chuck type strain relief
The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.
Features & Benefits
- Up to 32 A rms current rating
- Only 3 parts, easy to assemble
- High impact materials – long-lasting and reliable
- Easy and extremely precise locking system "Quick Lock"
- 1 piece strain relief, chuck for 6 to 10 mm cable O.D.
- Improved grip on latch
- Mates with 4-pole chassis connector as well and makes contact with +1/-1
- Certified according to IEC61984
- Suitable for IEC62368-1 compliant devices
Downloads
Technical Information
Product | |
---|---|
Title | NL2FX |
Connection Type | speakON |
Gender | female |
Electrical | |
---|---|
Contact resistance | < 2 mΩ (after lifetime) |
Dielectric strength | 4 kVdc (peak) |
Insulation resistance | > 1 GΩ (after dampheat) |
Rated current per contact | 32 A rms continuous |
Rated voltage | 250 V ac |
Attention | This product is strictly not intended for use as an AC mains or power supply connector! CAUTION: NOT FOR INTERRUPTING CURRENT |
Mechanical | |
---|---|
Cable O.D. | 6 - 10 mm |
Cable retention | ≥ 220 N (subject to cable O.D. and material) |
Lifetime | > 5000 mating cycles |
Wiresize | 1.5 - 4 mm² |
Wiresize | 16 - 12 AWG |
Wiring | screw type terminals or soldering |
Locking device | Quick Lock (latch) |
Material | |
---|---|
Contact plating | 4 µm Ag |
Contacts | Brass (CuZn39Pb3) |
Insert | Polyamide (PA 66) |
Locking element | Zinc diecast (ZnAl4Cu1) |
Shell | PBTP 20 % GR |
Strain relief | Polyacetal (POM) |
Environmental | |
---|---|
Flammability | UL 94 V-0 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 °C to +80 °C |
