*** DISCONTINUED ***

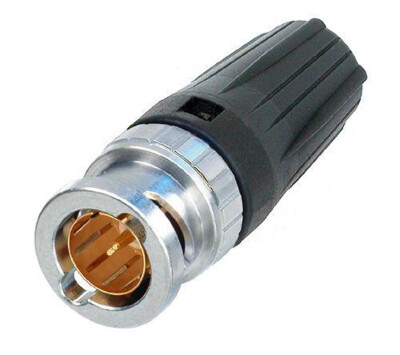

The rearTWIST HD Large BNC cable connector is designed for large cable diameters as used on long runs and high data rates (HD).

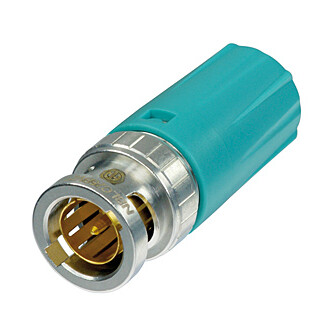

Like all Neutrik BNCs it offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications.

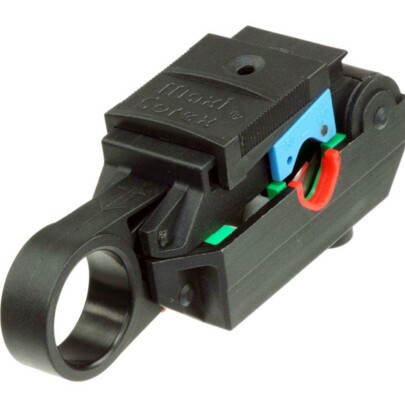

Suitable cable:
Draka 1.4/6.6 AF, Percon VK8, Tesca Massimo

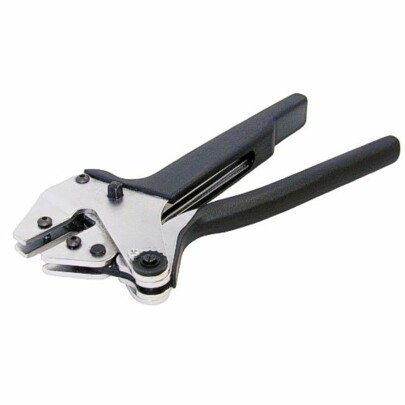

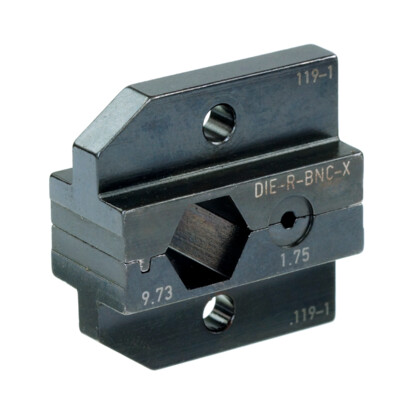

Crimp size:
Pin: 1.75 mm (hex)
Shield: 9.73 mm (hex)
Enter part number and search Neutrik UK distributor's stock.
| Product | |
| Title | NBLC75BSX14 |
| Connection Type | BNC 75 Ω |
| Gender | male |
| Electrical | |
| Contact resistance | ≤ 3 mΩ (inner) |
| Contact resistance | ≤ 2 mΩ (outer) |
| Dielectric strength | 1,5 kVdc |
| Impedance | 75 Ω |
| Insulation resistance | > 5 GΩ |
| Rated voltage | <50 V |
| VSWR | ≤1.050/>32 dB up to 1 GHz ≤1.065/>30 dB up to 2 GHz ≤1.100/>26 dB up to 3 Ghz |
| Mechanical | |
| Cable O.D. | 9.5 mm |
| Cable retention | > 30 N (Center) |
| Crimp size | 9,73 Hex crimp (shield) acc. IEC 60803 (die designation H) |
| Crimp size (pin) | 1,75 Hex crimp (pin) acc. IEC 60803 (die designation X) |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | |
| Locking device | Bayonett |
| Cable anchoring | Jacket crimping |
| Material | |
| Contacts | Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact) |
| Insert | PTFE |
| Shell | Brass (CuZn39Pb3) |
| Shell plating | Optalloy® |
| Environmental | |
| Temperature range | -30 °C to +85 °C |
| Contact crimpability | Complies with IEC 60803 and IEC 60352-2 |
