NBB75FA

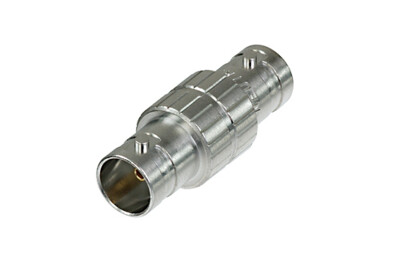

The BNC feed through coupler offers a true 75 Ω design for serial and digital (HD & UHD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.
-
United Kingdom ▾
- Liechtenstein
- Germany
- France
- United Kingdom
- United States
- Japan
- China
Selection of topics
Features & Benefits
Downloads
Distributor Stock Search
Technical Information
Features & Benefits
- Gold plated cage type center contact
- True 75 Ω design meets the stringent HD & UHD requirements
New cage type contact
- Closed contact design - extremely robust
- Gold plated cage type clip - best possible shielding and lowest contact resistance
Distributor stock search
Enter part number and search Neutrik UK distributor's stock.
Technical Information
| Product | |
| Title | NBB75FA |
| Connection Type | BNC 75 Ω |
| Gender | female |
| Electrical | |
| Signal Type | HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV |
| Contact resistance | ≤ 3 mΩ (inner) |
| Contact resistance | ≤ 2 mΩ (outer) |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 5 GΩ |
| Rated voltage | <50 V |
| VSWR | ≤1.03/>37 dB up to 1 GHz ≤1.05/>32 dB up to 2 GHz ≤1.08/>28 dB up to 3 Ghz |
| Mechanical | |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | |
| Locking device | Bayonett |
| Material | |
| Contacts | Brass (CuZn39Pb3) (ground contact) |
| Insert | PTFE |
| Shell | Brass (CuZn39Pb3) |
| Environmental | |
| Temperature range | -30 °C bis +85 °C |
